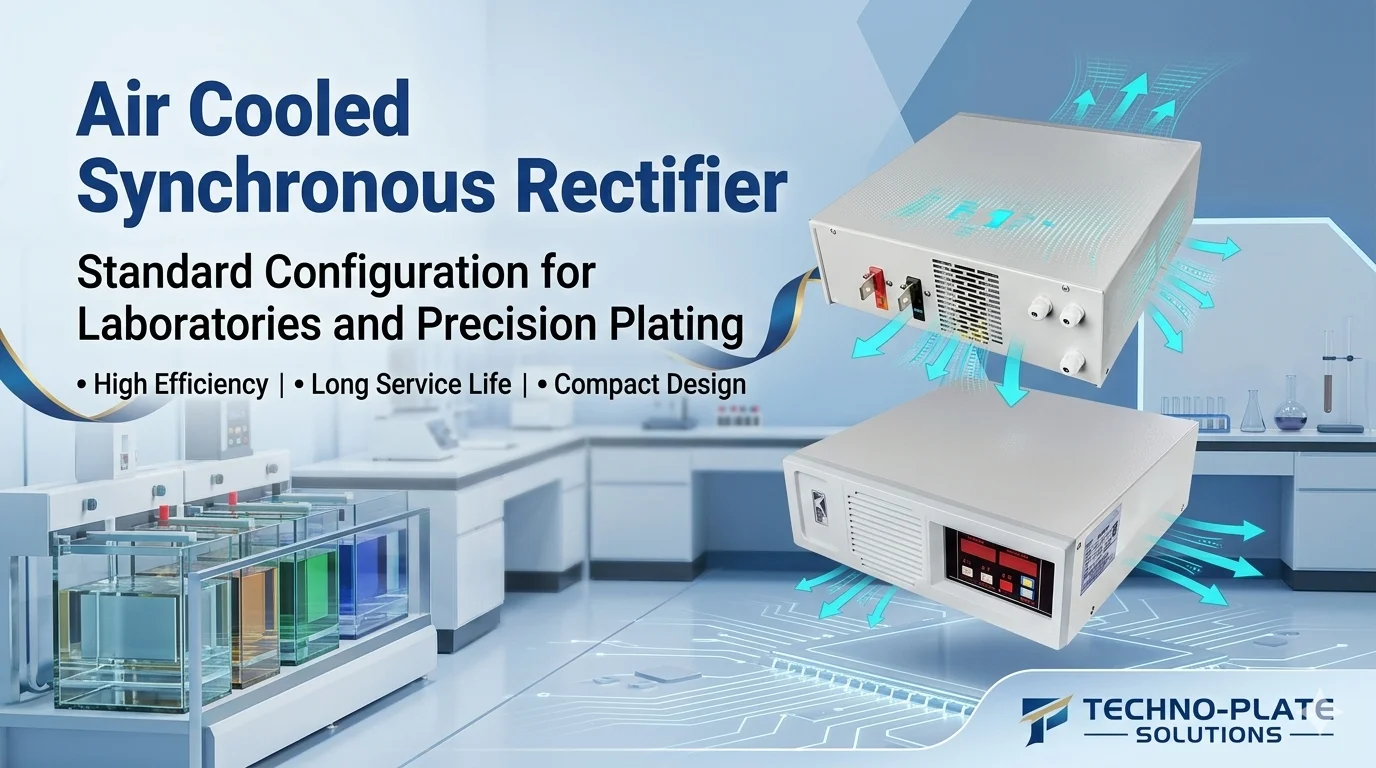

Air Cooled Synchronous Rectifier | Standard Configuration for Laboratories and Precision Plating: High Efficiency, Long Service Life, Compact Design
Designed specifically for precision plating and the plating of electronic components, the Air-Cooled Synchronous Rectifier seamlessly integrates synchronous rectification technology with a patented cooling structure. Whether for precious metal plating or cutting-edge wafer production, it meets your demanding requirements for low current and high precision with extremely low power consumption and exceptional stability.
【Key Advantages: High efficiency and energy savings, precise and stable performance, and maximized space utilization】
1. Leading-edge synchronous rectification, resulting in a significant improvement in energy conversion efficiency
By replacing traditional rectifiers with new-generation power devices, the voltage drop loss is reduced to just 0.1V–0.2V. This revolutionary technology significantly reduces heat generation and improves energy efficiency, making it an ideal choice for precision production lines and laboratories seeking to conserve energy and reduce consumption.
2. Patented cooling design ensures stable performance without any hiccups
Equipped with a patented cooling system, it significantly reduces the impact of heat loss, ensuring the device remains cool even under heavy loads. This effectively extends the lifespan of core components, providing you with more durable and stable DC power.
3. Industrial-grade, high-corrosion protection that withstands acid mist
The internal circuit boards are encapsulated using carefully selected high-grade triple-proof resin (acid-resistant, fog-resistant, and corrosion-resistant). Even when placed near complex electroplating tanks or in chemical environments, they ensure years of trouble-free operation, significantly reducing maintenance costs.
4. Compact, modular design for flexible placement and greater space efficiency
Compact and extremely lightweight, it can be easily integrated into various small production lines or laboratory workbenches. Its flexible layout capabilities address the challenges posed by traditional power supplies—which are bulky and difficult to move—enabling a more efficient layout in production facilities.
5. Fully digital intelligent monitoring for precise control down to every milliamp
Equipped with standard RS485, RS232, and Modbus communication protocols, it integrates seamlessly with remote controllers. It supports precise digital control, ensuring parameter consistency in high-value processes such as precious metal plating.
【Technical Highlights】
- Synchronous Rectifier: Eliminates high-voltage drop losses to achieve ultimate energy efficiency.
- Precision Output: Optimized for applications requiring high-precision, low-current output, such as continuous electroplating and wafer electroplating.
- Patented Cooling: Combined with a compact design, it delivers optimal thermal management within limited space.
