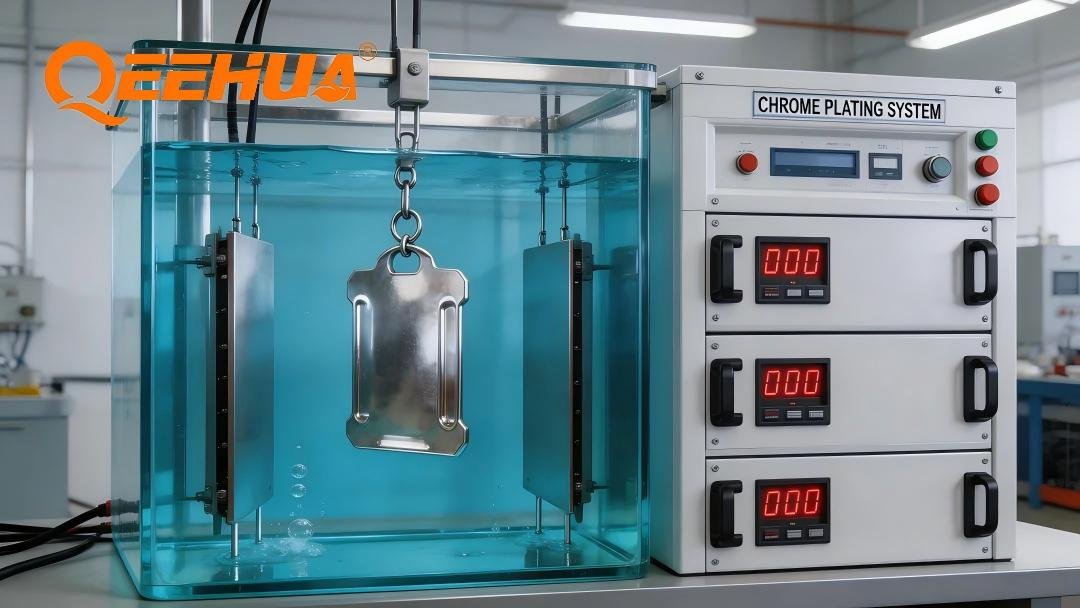

Optimizing Hard and Decorative Chrome Plating: A Solution-Oriented Guide to High-Frequency IGBT Power Supplies

In the competitive landscape of modern surface finishing, the quality of a chrome deposit can make or break a product’s success. Whether it is the mirror-like finish on an automotive bumper or the ultra-hard, wear-resistant surface of a hydraulic piston, the electrical current used during the plating process is the single most important variable.

For decades, the industry relied on bulky, inefficient Silicon Controlled Rectifiers (SCR). However, as tolerances tighten and energy costs soar, the shift toward high-frequency IGBT (Insulated Gate Bipolar Transistor) technology has become a necessity. The Chrome Plated Power Supply from Qeehua Rectifier represents this technological peak, offering a precision-engineered solution for the most demanding electroplating environments.

The Critical Role of Power in Chrome Plating

Chrome plating is an electrochemical process where chromium is deposited from a chromic acid solution. Unlike other plating processes, chromium plating—particularly Hexavalent Chrome (Cr6+)—has a very low cathode efficiency (typically 10% to 25%). This means that a significant portion of the electrical energy is wasted on the electrolysis of water, leading to the evolution of hydrogen gas.

Because the process is inherently inefficient and sensitive, even minor fluctuations in current density can lead to defects such as:

• Burning: Caused by excessive current at high-density areas (edges and corners).
• Dullness or “Milkiness”: Caused by current drops or improper ripple factors.
• Pitting: Often exacerbated by unstable gas evolution due to irregular current.

To solve these issues, the Chrome Plated Power Supply utilizes high-frequency switching technology to provide a near-perfect DC output, ensuring that the rate of deposition is consistent across the entire workpiece.

Technical Deep Dive: High-Frequency IGBT vs. Traditional SCR

To understand why the Qeehua Chrome Plated Power Supply is superior, we must look at the internal architecture.

The IGBT Advantage

Traditional SCR rectifiers operate at 50Hz or 60Hz. This low frequency requires massive transformers and produces a “choppy” wave that requires significant filtering to reach low ripple levels.

Qeehua’s IGBT rectifiers operate at frequencies between 18kHz and 20kHz. By switching the current thousands of times per second, the device can:

1. Reduce Ripple: Qeehua’s units maintain a ripple factor of less than 1-3%. In chrome plating, low ripple is essential for achieving a dense, micro-cracked structure that provides superior corrosion resistance.
2. Increase Efficiency: With an efficiency rating of over 90%, these power supplies convert more electricity into plating energy and less into wasted heat.
3. Improve Response Time: The digital control loop can adjust for changes in bath resistance in milliseconds, preventing “surges” that can ruin a delicate batch.

Solution for Hard Chrome Plating: Durability and Thickness Control

Hard chrome plating, also known as industrial chrome, is applied in thick layers (typically 20 to 500 microns) to provide extreme hardness (HRC 65-70) and low friction. Common applications include hydraulic cylinders, engine valves, and printing rollers.

The Challenge: Long Cycles and High Heat

Hard chrome plating cycles can last several hours or even days. This requires a power supply that can handle 100% duty cycles without overheating or drifting in current accuracy.

The Qeehua Solution

The Chrome Plated Power Supply is built for heavy-duty industrial use.

1. Precise Current Density: By providing a stable “Constant Current” mode, the rectifier ensures that the chromium builds up at a predictable rate (e.g., 25 microns per hour), allowing operators to hit exact thickness targets without over-plating, which saves expensive chromic acid.
2. Soft Start Function: To prevent “shocking” the part and causing adhesion failure, Qeehua rectifiers feature a programmable ramp-up time, allowing the current to increase gradually.
3. Water-Cooling Options: For the high-amperage demands of hard chrome (often 5,000A to 10,000A+), Qeehua offers water-cooled configurations. This keeps the internal electronics isolated from the corrosive fumes of the plating shop, drastically increasing the lifespan of the unit.

Solution for Decorative Chrome Plating: Aesthetics and Uniformity

Decorative chrome is a thin layer (0.25 to 0.5 microns) usually applied over layers of nickel. It is used on automotive trim, appliances, and plumbing fixtures.

The Challenge: The “Throwing Power” Problem

Chromium has poor “throwing power,” meaning it is difficult to plate into recessed areas or complex shapes. If the current is too low, the recess won’t plate (whitewash); if it’s too high, the edges burn.

The Qeehua Solution

• Voltage Stability: The Chrome Plated Power Supply maintains a steady voltage that helps maximize the throwing power of the bath.
• Low Ripple for High Brightness: High ripple in decorative plating can cause a “haze” or “cloudiness” in the finish. By keeping ripple below 1%, Qeehua ensures a brilliant, blue-white luster that meets the aesthetic standards of luxury automotive brands.
• Multi-Step Programming: Modern decorative plating often requires different current stages. Qeehua’s digital controllers allow for pre-set recipes, ensuring that every batch—from door handles to faucet taps—receives the exact same treatment.

Overcoming the Corrosive Environment: Design for Longevity

The environment of a chrome plating shop is one of the most hostile in the manufacturing world. Chromic acid mist is highly corrosive to electronic circuits. A standard industrial power supply would fail within months.

Engineering for Survival

Qeehua has engineered the Chrome Plated Power Supply with several layers of protection:

1. NEMA 4X / IP54 Enclosures: The cabinets are sealed and treated with anti-corrosion coatings.
2. Isolated Control Circuits: The sensitive digital logic is physically separated from the high-power sections to prevent electromagnetic interference and chemical exposure.
3. Sealed Cooling Channels: In water-cooled models, the coolant flows through sealed heat sinks, meaning no ambient “acid air” is pulled into the machine by fans.
4. Gold-Plated Connectors: Internal communication pins are often plated to prevent oxidation that causes signal loss.

Learn more about the robust construction here: Qeehua Chrome Rectifier Details.

Energy Efficiency and Economic Impact (ROI)

For many plating shops, electricity is the second highest operating cost after labor. Old SCR rectifiers are notoriously inefficient, often operating at 60-70% efficiency because of the phase-shift control method.

The Math of Savings

Consider a plating shop running a 5,000A / 12V operation for 16 hours a day, 250 days a year.

• SCR Rectifier (70% efficiency): Consumes ~102,857 kWh annually.
• Qeehua IGBT Rectifier (90% efficiency): Consumes ~80,000 kWh annually.
• Annual Savings: 22,857 kWh. At an average industrial rate of $0.12/kWh,theshopsaves\ast \ast$2,742 per year per rectifier**.

Beyond direct energy savings, the reduction in “scrap rate” (parts that must be stripped and re-plated) often provides an even faster Return on Investment (ROI). If the Qeehua Chrome Plated Power Supply reduces the scrap rate by just 2%, the savings in chemicals, labor, and time can reach tens of thousands of dollars.

 Industry 4.0: Automation and Remote Control

As factories move toward “Smart Manufacturing,” the ability to monitor and control equipment remotely is vital.

Digital Integration

The Qeehua Chrome Plated Power Supply is equipped with modern communication protocols:

• RS485 & Modbus RTU: Allows the rectifier to communicate with a central PLC (Programmable Logic Controller).
• Remote Analog Control: Supports 4-20mA or 0-10V signals for integration into existing automated lines.
• Data Logging: By connecting the rectifier to a computer system, shops can maintain a digital record of the current/voltage for every single plating cycle. This is often a requirement for aerospace (Nadcap) and automotive (IATF 16949) certifications.

Summary of Solutions Provided by Qeehua

Conclusion: Why Choose Qeehua for Chrome Plating?

Chrome plating remains one of the most difficult and regulated processes in surface finishing. To succeed, shops need more than just “a box that provides current.” They need a precision instrument designed specifically for the unique chemistry of chromium.

The Chrome Plated Power Supply by Qeehua Rectifier offers the perfect balance of advanced IGBT performance and rugged industrial design. By reducing ripple, increasing efficiency, and providing the digital tools needed for modern quality control, Qeehua helps plating shops improve their bottom line while delivering a superior product to their customers.

Whether you are upgrading an old hard-chrome line or building a new state-of-the-art decorative plating facility, the power supply is the heart of your operation. Choosing Qeehua ensures that the heart beats with precision and reliability.

Ready to upgrade your plating quality? Explore the full range of specifications and request a quote at the official product page: https://www.qeehuarectifier.com/product/chrome-plated-power-supply/
