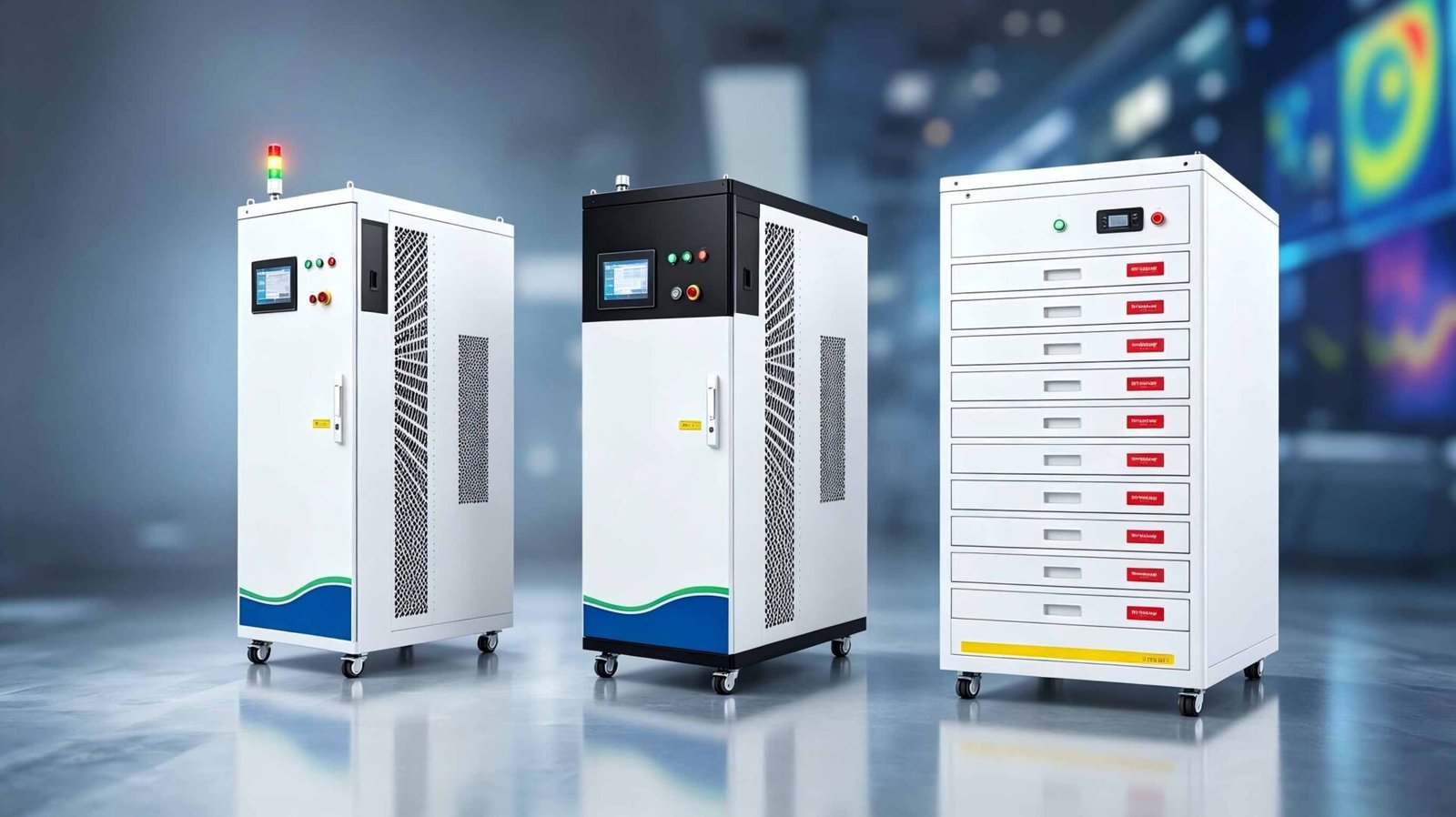

DC Power Supply Cooling Systems: Air-Cooled vs. Liquid-Cooled vs. Heat Pipe — A Comprehensive Thermal Management Comparison

Meta Description: Comprehensive comparison of air-cooled, liquid-cooled, and heat pipe thermal management systems for industrial high-frequency DC power supplies. Learn which cooling technology fits your electroplating, electrolysis, or surface treatment operation — with insights from Qeehua’s engineering team.

URL Slug: dc-power-supply-cooling-system-air-vs-liquid-heat-pipe-comparison

If you have ever stood next to an industrial rectifier running at 80% rated load on a summer afternoon, you understand that thermal management is not an afterthought — it is the difference between a unit that delivers reliable service for a decade and one that requires unscheduled downtime every few months. For procurement teams evaluating high-frequency switching DC power supplies in India’s rapidly expanding manufacturing sector, Turkey’s automotive supply chain, Brazil’s surface treatment industry, and other growing markets, the cooling system design deserves as much scrutiny as the output current rating or ripple specification.

This article provides a thorough technical comparison of the three dominant cooling architectures used in modern rectifiers: forced-air cooling, liquid (water/glycol) cooling, and heat pipe-based hybrid cooling.

The Thermal Challenge: Why Cooling Architecture Matters

High-frequency switching DC power supplies convert AC mains power to regulated DC output through multiple energy conversion stages — input rectification, power factor correction, high-frequency inversion, output rectification, and filtering. At each stage, energy losses manifest as heat:

For a 100 kW rated rectifier operating at 96% overall efficiency, approximately 4 kW of heat must be continuously removed from the enclosure. For larger installations in the 500 kW to 2 MW range common in aluminum anodizing and hard chrome plating lines, heat rejection reaches 20-80 kW — equivalent to the cooling load of a small commercial building.

The consequences of inadequate thermal management include:

• **IGBT junction temperature exceeding 150°C**, triggering thermal shutdown or catastrophic failure
• **Electrolytic capacitor drying out**, reducing filter lifetime from 10+ years to under 2 years
• **Component drift**, causing output voltage/current to wander outside process tolerances
• **Corrosion acceleration**, as elevated temperatures dramatically increase humidity-induced oxidation inside the enclosure

Forced-Air Cooling: The Workhorse of Standard Industrial Rectifiers

How It Works

Forced-air (convection) cooling uses strategically positioned fans to draw ambient air across finned aluminum heatsinks attached to power semiconductors (IGBTs, diodes, thyristors). Air enters through filtered intake vents, absorbs heat from heatsink surfaces, and exhausts through louvered openings.

Advantages

Limitations and When to Avoid It

Forced-air cooling faces fundamental physics constraints that become limiting at higher power levels:

• **Air’s low specific heat capacity** (~1.0 kJ/kg·K) means large volumetric flow rates are required to move significant heat
• **Heat transfer coefficient** between air and heatsink surface is relatively low (25-100 W/m²K), necessitating large heatsink surface areas
• **Ambient temperature dependence**: In facilities where indoor temperature exceeds **40°C** (common in tropical regions and unconditioned factories), the temperature differential driving convective cooling shrinks dramatically
• **Dust and contaminant ingestion**: In electroplating shops with airborne chemical mists (acid fumes, cyanide vapors), fan-intake filters require frequent replacement, and corrosive deposits accumulate on heatsink fins

Rule of thumb: Forced-air cooling is generally suitable for rectifiers up to ~200-300 A at 24 V (approximately 5-7 kW output) in clean environments, or up to ~50 kW with aggressive multi-fan designs. Beyond this threshold, liquid cooling becomes increasingly attractive.

Best-Suited Applications for Air-Cooled Rectifiers

• Small-to-medium rack plating lines (zinc, copper, nickel) with current demands under 2000A
• Laboratory-scale R&D electroplating and electrolysis setups
• Auxiliary power supplies for anodizing line agitation or heating systems
• Facilities in regions with moderate climates (annual average < 30°C) and clean air quality
• Operations prioritizing lowest initial procurement cost over long-term efficiency

Liquid Cooling: The High-Power Champion

System Architecture

Liquid-cooled rectifiers circulate a coolant mixture (typically deionized water + ethylene glycol or propylene glycol) through cold plates directly attached to IGBT baseplates and power diodes. Heat absorbed by the coolant is rejected via a remotely mounted air-to-liquid heat exchanger (radiator) with its own fan assembly, or connected to the facility’s existing chilled water loop.

Performance Characteristics That Justify the Complexity

Real-World Liquid Cooling Deployment Scenarios

Scenario A: Hard Chrome Plating Line (South Africa Automotive Parts Supplier)

A Johannesburg-based facility operates a 12-tank hard chrome plating line requiring 24V / 8000A per station (192 kW). Forced-air cooling would demand an impossibly large heatsink array and fan bank. A liquid-cooled rectifier system with remote radiator installation reduced the equipment footprint by 65% while maintaining IGBT junction temperatures below 110°C even during South African summer peak temperatures exceeding 38°C indoors.

Scenario B: Aluminum Anodizing Facility (Mexico Monterrey Cluster)

An anodizing operation running Type II and Type III processes needs stable voltage delivery at 18-24V / 6000A. The critical requirement here is not just heat removal but thermal stability — even a 2°C drift in semiconductor temperature can alter output voltage enough to affect oxide layer thickness uniformity. Liquid cooling’s superior thermal mass and precise temperature regulation delivered consistent coating results across all production shifts.

Maintenance Considerations for Liquid-Cooled Systems

• **Coolant replacement**: Every 18-24 months depending on glycol concentration and operating temperature
• **Leak detection**: Modern units include moisture sensors inside the electronics compartment that trigger alarms upon any coolant intrusion
• **Freeze protection**: In facilities where ambient temperature drops below 0°C (Poland winter, Ukraine northern regions), a **minimum 30% glycol concentration** is mandatory
• **Pump redundancy**: Higher-end models feature dual redundant pumps with automatic switchover capability

Heat Pipe Hybrid Cooling: The Emerging Middle Ground

Heat pipe technology offers an intriguing compromise between air cooling’s simplicity and liquid cooling’s performance. A heat pipe is a sealed copper (or copper-wick) tube containing a small quantity of working fluid (water, methanol, or refrigerant) that undergoes continuous evaporation → vapor transport → condensation → return cycle, transferring heat with extraordinary efficiency using phase-change physics rather than mechanical pumping.

Integration Approaches in DC Power Supplies

• **Heat pipe heatsink attachments**: Copper heat pipes are embedded within traditional aluminum fins, spreading heat laterally from concentrated IGBT hotspots across a wider fin area. This reduces the number of fans needed while maintaining semiconductor temperatures within safe limits.
• **Heat pipe cold plate assemblies**: Multiple heat pipes connect IGBT baseplates to a remote fin stack, physically separating hot components from sensitive control electronics.
• **Loop thermosyphon systems**: A sealed, gravity-assisted two-phase loop circulates coolant without pumps, offering many benefits of active liquid cooling with no moving parts in the primary thermal path.

Where Heat Pipe Cooling Shines

• **Medium-power range** (10-100 kW): Fills the gap where forced-air struggles but full liquid cooling feels like overkill
• **Dust-heavy environments**: Sealed heat pipe loops eliminate the airflow-through-enclosure problem entirely
• **Remote heat rejection**: Heat pipes can transport thermal energy 20-30 cm away from power semiconductors, allowing compact enclosure designs
• **Orientation-sensitive applications**: Thermosiphon variants work optimally when the condenser section sits vertically above the evaporator — a natural fit for floor-standing rectifier cabinets

Currently, heat pipe adoption is most prevalent among Chinese manufacturers serving export markets, particularly for 12V-48V / 500-3000A models popular in decorative plating and medium-duty anodizing applications throughout Southeast Asia and the Middle East.

Geographic and Environmental Selection Matrix

Your facility’s location and operating environment should heavily influence cooling architecture selection:

FAQ: DC Power Supply Cooling Systems

Q: How often do cooling fans need replacement in air-cooled industrial rectifiers?

A: Quality ball-bearing fans rated for 50,000+ hours L10 life typically last 5-7 years under continuous 24/7 operation before showing signs of bearing wear (increased vibration noise, reduced RPM). Sleeve-bearing economy fans may fail in as little as 2-3 years. In dusty electroplating environments (common in Guangdong’s metal-finishing clusters, Mumbai’s alloy-plating zones, and Istanbul’s chrome-plating districts), fan lifespan can be halved due to blade imbalance from accumulated deposits. Proactive replacement every 3-4 years is recommended as preventive maintenance. Many modern rectifiers feature fan-speed monitoring that alerts operators when RPM drops below threshold — a worthwhile specification to include when sourcing new equipment.

Q: Can liquid-cooled rectifiers be connected to our factory’s existing chilled water system?

A: Yes, but with important caveats. Most industrial chilled water loops operate at 7-12°C supply temperature, which is significantly colder than the 35-45°C optimal inlet temperature for rectifier coolant. Connecting directly causes internal condensation risks and thermal shock to power semiconductors. The correct approach is installing a plate heat exchanger intermediary that thermally isolates the rectifier’s closed glycol loop from the facility chilled water circuit. Reputable suppliers including those based in Foshan’s electrotechnic manufacturing hub can engineer custom interface packages with flow controls, temperature sensors, and isolation valves tailored to your plant’s specifications.

Q: What is the approximate cost premium of liquid cooling versus air cooling for a 50 kW rectifier?

A: Based on current 2026 market pricing from Chinese manufacturers exporting to global markets, liquid-cooling adds roughly 20-35% to the base unit cost for outputs in the 30-100 kW range. However, total ownership cost analysis frequently favors liquid cooling at power levels above 50 kW when factoring in: (a) energy savings from reduced fan motor consumption (liquid pump draws far less power than high-CFM fan arrays); (b) production uptime improvement from fewer thermal-related faults; (c) extended component lifespan (cooler IGBTs and capacitors degrade more slowly); and (d) smaller physical footprint freeing valuable factory floor space. Request a detailed TCO projection from your supplier that includes these factors for your specific utilization profile.

Q: Our electroplating shop has highly corrosive acid mist in the air. Which cooling system handles this best?

A: This is a scenario where sealed-loop liquid cooling or heat pipe hybrid cooling decisively outperforms forced-air alternatives. With air-cooled units, corrosive vapors are continuously drawn across heatsink fins and fan bearings, accelerating aluminum corrosion and seizing fan motors. Liquid-cooled rectifiers with fully sealed enclosures and externally mounted heat exchangers isolate power electronics from the contaminated atmosphere entirely. For maximum protection, specify: (1) IP54 minimum enclosure rating (ideally IP65 if budget permits); (2) positive-pressure cabinet sealing with filtered intake; (3) corrosion-resistant heat exchanger fins (epoxy-coated aluminum or stainless steel); and (4) external radiator placement outside the plating room whenever piping routing permits. Leading Chinese manufacturers have extensive experience supplying to harsh-environment plating operations across Asia and can provide case-study references from comparable installations.

Conclusion: Match Your Cooling Strategy to Your Reality

There is no universally “best” cooling architecture for industrial DC power supplies — there is only the most appropriate choice for your specific combination of power level, ambient conditions, maintenance capabilities, and budget constraints. Forced-air cooling remains the economical default for smaller units and clean environments. Liquid cooling dominates the high-power segment where thermal performance justifies added complexity. And heat pipe hybrid solutions carve out a compelling niche in the middle ground.

When requesting quotations from suppliers — whether domestic manufacturers in your country or export-oriented Chinese producers in Guangdong Province — always specify your complete operating environment profile alongside electrical requirements. A well-informed cooling system specification today prevents costly field modifications and unplanned downtime tomorrow.
